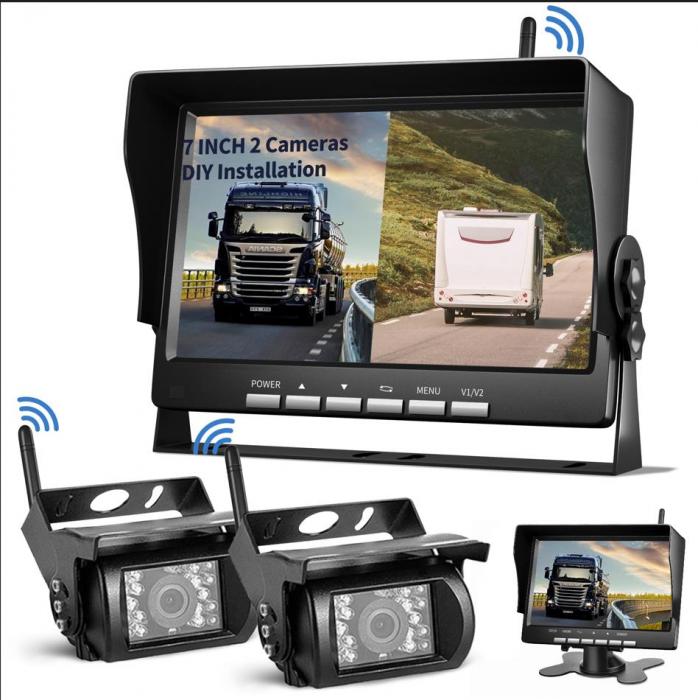

| Name: | Truck 720p 7 Inch LCD Back up HD Night Vision Front Rear View Security Reverse Camera Kit Dual View Car Camera Video System |
Product Description
Essential details
Type: Reverse Camera
Power: MAX 1 W
Voltage: Other
Place of Origin: China
Brand Name: OEM
Model Number: QZ717-2
Product name: hd cctv camera system
Image sensor: 1/4" CMOS
Waterproof: IP 67
Effective Pixels: 648*448
View angle: 170 Degree
Night vision: 18 Pcs IR Lights
Certificate: CE FCC
Display: car reverse camera with screen
Resolution: 800*480
Function: backup camera kit
Power: MAX 1 W
Voltage: Other
Place of Origin: China
Brand Name: OEM
Model Number: QZ717-2
Product name: hd cctv camera system
Image sensor: 1/4" CMOS
Waterproof: IP 67
Effective Pixels: 648*448
View angle: 170 Degree
Night vision: 18 Pcs IR Lights
Certificate: CE FCC
Display: car reverse camera with screen
Resolution: 800*480
Function: backup camera kit
Product Description
7-Inch TFT LCD widescreen monitor--With high resolution image, 2 video input with full color display and low power consumption. Auto Water-resistent Camera Lens, with 18 Infrared (IR) LED. Effective range up to 15m. Easy to install The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car. IP 67 waterproof grade can cope with marine environment. Hard Metal Cased Camera; Waterproof and Mud proof.
7-Inch TFT LCD widescreen monitor--With high resolution image, 2 video input with full color display and low power consumption. Auto Water-resistent Camera Lens, with 18 Infrared (IR) LED. Effective range up to 15m. Easy to install The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car. IP 67 waterproof grade can cope with marine environment. Hard Metal Cased Camera; Waterproof and Mud proof.
Features:
1, 7 inch TFT-LCD car reverse monitor
2, Dual video input for rear view camera and DVD
3, Power memory function & low current consumption
4, Easy for installation and uninstallation
5, Automatically display when reversing
6, Night vision rear view camera
Rearview System Technical Parameter:
| TFT-LCD reverse monitor | Front and rear view camera | ||
| Screen size | 7-inch screen | Operating voltage | DC 24V |
| Display mode | 16: 9 | Resolution | 648*488 |
| Resolution | 800R.G.B x 480 dots | View angle | 170 degree |
| System | PAL / NTSC | Camera | 2 pcs |
| Operating voltage | DC 24V | Waterproof | IP67 |
| Power | ≤7W | Infrared light | 18pcs |
| Operating temperature | -10 ºC~ + 65 ºC | Night vision distance | 15 meters |
| Storage temperature | -10 ºC~ + 65 ºC | Minimum illumination | 0Lux (LED ON) |
| Video input | 2AV Input | Operating temperature | -20 ° C ~ + 70 ° C |
| Contrast | 350:1 | Shell Material | Aluminum |
| Optional | audio | Mount material | Metal |
